Revenant — 1112204AT (5'5 Green)
Photo 1 of 10

Revenant

A modern performance twin built to drive when the wave has shape.

TWIN FINTWINWAIST-HIGH TO OVERHEAD WITH SHAPEFROM $750

The Revenant is our high-performance twin — built for the shaped-surf window where you want twin-fin looseness without giving up drive.

WHAT IT WANTS

Clean waist-to-head surf with shape — beach break, point, or reef with some push. Twin fins want a face to drive off; dead-flat mush won't bring the shape alive. Punches above its weight at Lowers, Salt Creek, and the smaller-day Mentawais.

SKILL LEVEL

Intermediates and advanced surfers wanting a modern twin-fin with Machado Go Fish lineage.

WHAT IT'S NOT

Not a flat-day groveler — for knee-high mush, a wider and flatter shape will paddle and plane better. Not a hollow-reef board either; when the surf gets big and heavy, a dedicated shortboard or step-up will give you more control.

BUILD DETAILS

Build overview — rocker profile, rail shapes, fin positions. Hover any zone for the per-section call-outs.

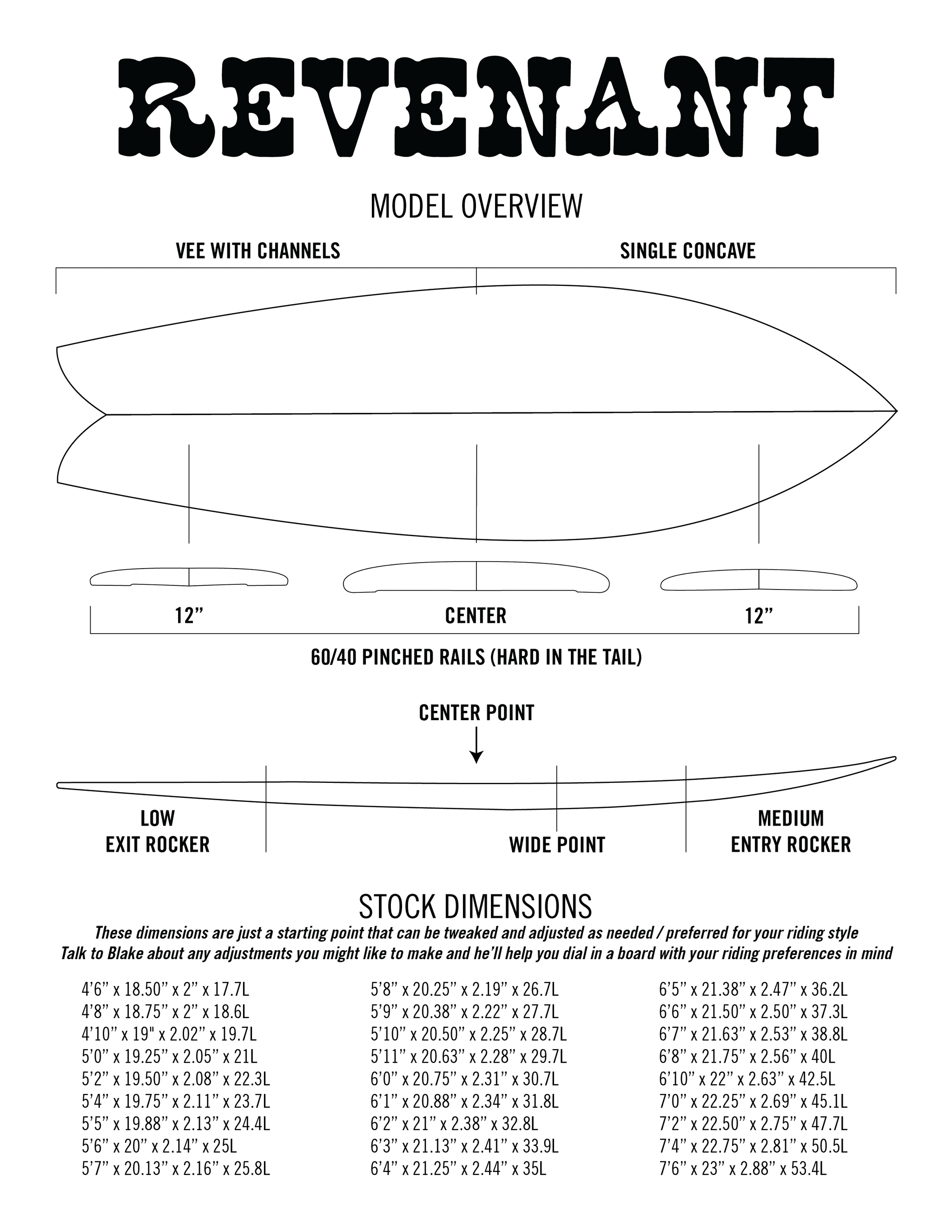

Revenant contour diagram — rocker profile, rail shapes, fin positions.

THE DESIGN

Shortboard-derived outline with a wide point set just behind center and a medium entry rocker that paddles like a modern shortboard. Underneath, a single concave runs through the front two-thirds of the board — that lifts and generates speed through the middle of the wave. Behind the fins, the bottom rolls into a Vee panel with channels through the last twelve inches: the Vee rolls the board rail-to-rail at twin-fin speed, and the channels split water cleanly at the exit so the board drives out of turns instead of stalling. Low exit rocker keeps the board fast through the flat middle of a wave.

THE RAILS

60/40 pinched rails through the midsection give a forgiving rail-to-rail feel at twin-fin speed. Hard rails through the last twelve inches of the tail release water cleanly at speed — which is why the board drives off the back foot instead of skating.

+ Not sure which size? Calculate your volume

Volumes are starting points, not rulebooks. Conditions, stance, and style all shift the math.

STOCK DIMENSIONS

Stock dimensions are where we start. Customers tweak width, thickness, and volume to match where they surf and how they ride. Talk to Blake about any adjustments you'd like to make — he'll help you dial in a board with your riding preferences in mind.

Featured sizes cover the core-liters range (26–35L) most of our customers land in. Need a size outside the band? Expand All sizes or start a custom order for a specific dim.

LengthWidthThicknessVolume
5'7"20.13"2.16"25.8L
5'8"20.25"2.19"26.7L
5'9"20.38"2.22"27.7L
5'10"20.50"2.25"28.7L
5'11"20.63"2.28"29.7L
6'0"20.75"2.31"30.7L
6'1"20.88"2.34"31.8L
6'2"21.00"2.38"32.8L
6'3"21.13"2.41"33.9L
6'4"21.25"2.44"35.0L
+ How to think about dims

Length. Longer = more rail line in the water (drives through a turn, holds through flat sections, paddles better). Shorter = quicker rail-to-rail, tighter in the pocket, gives up some drive. Twin fins reward extra length more than a shortboard does — a 6'0" twin often rides like a 5'10" thruster.

Width. Narrower = holds a line in clean, fast waves; faster rail-to-rail. Wider = paddles better, more stable in softer surf, sits flatter on rail. The Revenant runs slightly wider than its thruster equivalents because the twin setup generates less drive on its own — the dim progression already accounts for this.

Thickness / volume. More volume = more paddle and more margin on soft days. Less volume = sensitive underfoot; rails sink cleanly; turns feel crisper. Size for the waves you actually surf, not the ones you hope to surf. Ride your everyday-shortboard volume on the Revenant — don't add 2–3L "for the twin" the way you would for a fish.

Between sizes? We usually size up in volume (not length) for softer waves, and down in volume for overhead surf with real push.

Don't see your size? Message Blake

FIN SETUP

Twin only. Futures boxes. The shape is tuned around a twin fin specifically — we don't offer quad, thruster, or trailer conversions. If you want a different fin setup, look at our other twin-fin or shortboard models.

Need help picking between rake and pivot templates? Read the fin guide, then start a conversation — Blake's happy to talk it through before you lock the build.

Recommended Fins

The Revenant bridges modern and traditional twin fin performance. It can handle more upright, performance-oriented twins than the Pin Twin — fins with less base and more height that allow tighter, more vertical turns.

twin-fin setup
Futures boxes
FCS II Modern Keel fin thumbnail
FCS II

Modern Keel

· PG

Modern Performance Twin

FCS's modern take on the twin fin — more upright than the MR, which matches the Revenant's progressive design. Performance Glass construction adds stiffness.

Shop FCS II
FCS II

Performance Keel

Message Blake for our current FCS II performance keel pick.

Call (949) 750-5067 →
Futures

Modern Twin

Message Blake for our current Futures modern twin pick.

Call (949) 750-5067 →
Futures T1 fin thumbnail
Futures

T1

· Fiberglass

Traditional Keel

If you want the Revenant to feel more classic, the T1 keel pushes it toward flowing, drawn-out turns. More base = more speed down the line.

Shop Futures
Futures Knost Twinzer fin thumbnail
Futures

Knost Twinzer

· Honeycomb

Classic Keel / Rake-Leaning

Alex Knost's twinzer — fuller-foiled keels with more rake than the Mayhem. The right pick for fattier walls where you want sustained drive and a longer arc.

Shop Futures
True Ames

Modern Twin

Message Blake for our current True Ames modern twin pick.

Call (949) 750-5067 →
True Ames Furrow Twinzer fin thumbnail
True Ames

Furrow Twinzer

· Solid Fiberglass

Twinzer / Rake-Leaning

Hand-foiled fiberglass twinzer set — main keels paired with small canards for added projection. More drive than the TA Twin; a step closer to a full keel feel for fattier surf.

Shop True Ames
NVS Nautilus Twin fin thumbnail
NVS

Nautilus Twin

· Apex

Modern Twin / Mid-Rake

NVS's flagship twin. Hand-foiled fiberglass keel set with smooth mid-rake drive — runs as a glass-on (no box) for a pure-feel build.

Shop NVS
NVS Stu Kenson Twinzer fin thumbnail
NVS

Stu Kenson Twinzer

· Apex

Twinzer / Rake-Leaning

Stu Kenson's collab — hand-foiled fiberglass twinzer with rake-leaning template tuned for held-rail drive on fattier walls. The drive-focused alt to the Nautilus.

Shop NVS

Not sure which fin template is right for you? Rake, area, flex, and construction all change how a board feels.

Read the Complete Fin Guide →

RAKE SPECTRUM

Where each recommended fin sits between drawn-out rake (heavier arcs, more hold) and tight pivot (vertical release, modern shortboard turning). Mid-rake (neutral) is the balanced default.

On a twin fin, the spectrum reads: rake = sustained drive and trim speed in fattier waves; mid-rake = the everyday pick that still releases off the top. Pivot-leaning twins exist but are rare.

WHAT TO PICK

Twin fins live mid-rake to rake-leaning. Drive and looseness both want the side fins to hold a long arc rather than pivot tight. Lean rake for fattier, drawn-out point break and longer carves; sit nearer mid-rake when you want a touch more release on punchy beach break. Per-fin picks for this model are coming — message Blake for current recommendations.

SPECS REFERENCE

Full Build Specifications

Stock dimensions, rocker, bottom contour, rail profile, fin positions, recommended fins by brand, and shaper notes for shapers and partner shops.

AVAILABLE IN THE SHOP

Ready to ride. Stop by San Clemente or message us to claim one — they move fast.

CONSTRUCTION & PRICING

Starting at $750 + tax

Every Revenant is built to order in San Clemente. Pick a finish tier below; customize further in the next section.

$750

Clear Resin Sanded

4-6 weeks

Functional finish, fastest turnaround. PU blank, polyester resin, sanded off the lam.

$900

Resin Tint Sanded

6-8 weeks

Color both sides of the board in the lam, then sand it smooth.

$1,100

Tint Gloss + Polish

8-10 weeks

Top-tier finish. Resin tint plus a gloss coat polished to show-quality.

Foam + Resin options

PU blank + Polyester resin guide

Standard build

PU blank + Epoxy resin guide

+$130

EPS blank + Epoxy resin guide

+$175

Art resin by Bree Poort (@justbree) guide

$1,000$1,500
Customize your build

AESTHETIC

Color / Side guide

Resin Color Swirls / Side (in addition to "Color / Side")

+$75

Resin Color Swirls / Side guide

+$30

Gloss + Polish guide

+$200

Airsprays guide

+50-100+

Custom Printed Logos guide

+60-150+

Volan Deck Patch guide

+$30

Volan Tail Patch guide

+$20

STRUCTURAL

White Carbon Tail Patch guide

+$35

Intricate Stringers guide

>1/2" thick, double stringer or more, wedge stringers, foam strips, t-bands, etc.

+20-100+

Wood / Foam Tail Block guide

+50-100

FIN SYSTEM

Five Fin Setup guide

for use as a thruster or a quad

+50-100+

Glass-on Fins (1-5 fins) guide

including fins

+$150

Resin Leash Loop guide

+$50

25% deposit today, balance due on completion. Timeline reflects current queue — confirmed on order.

Boards we've built

Recent customer builds — every Revenant dialed to the rider.

1112204AT (5'5 Green)

112114JLY — Drew Capener (5'10 Steel Blue)

1172204AT — Jake Elieson (5'10 Malibu Blue)

12203JE(91) (5'11 Deco Green)

1652219AT — Ryan Carter (6'2 Wedge DS Clear Simple)

1922201SR (5'9 White 50-50 Opaque)

1972201SR — Phillip Cuccias (6'4 Retro Airspray)

1992201SR — Sebastian Aguirre (6'4 Tan Deck)

2002201SR — Alex Dunn (6'5 Clear Simple)

2012201SR — Grant Cooper (6'5 Brown Rails)

2022201SR — Rob Simon (6'6 brown rails blue swirsl deck)

2032201SR — Chase Donahoo (6'6 Clear Simple)

212131JLY — Jack Lundquist (5'10 Ice Blue)

22203JE(92) (5'10 Green Deck Clear Bottom)

222127AT — Eric West (5'10 Clear Volan Gloss)

2322201SR — NAME (5'6 Clear Simple No Channels)

2332201SR — Jack Mobley (5'6 Blue Airspray Deck No Channels)

2432201SR — Cole McLaughlin (5'10 clear simple)

2522201SR — Brandon Hatch (6'4 Blue G+P)

2842201NR (6'1 Clear Simple)

32203JE(93)-ALEX — (Blue Deck Black Rails)

3322215DR — Theo Capener (5'2 Clear Simple)

3392231DR — Jacob Trask (5'9 Midnight Blue)

362207JNY (5'10 Black Swirl)

3832320MH — Radwell (6'2 Blue)

3922304AL — Ryan Liebengood (6'4 Clear Simple)

402224AL — Max Ward (5'10 Black Cheetah Print)

412224AL — Sam Edgar (6'2 Clear Simple)

4122328JE — Alessandro Griffini (6'1.5 CS Wedge DS)

4282308SR (6'2 DS Wedge Checkered)

4332325OR — Alessandro Griffini (6'0 Yellow Bottom)

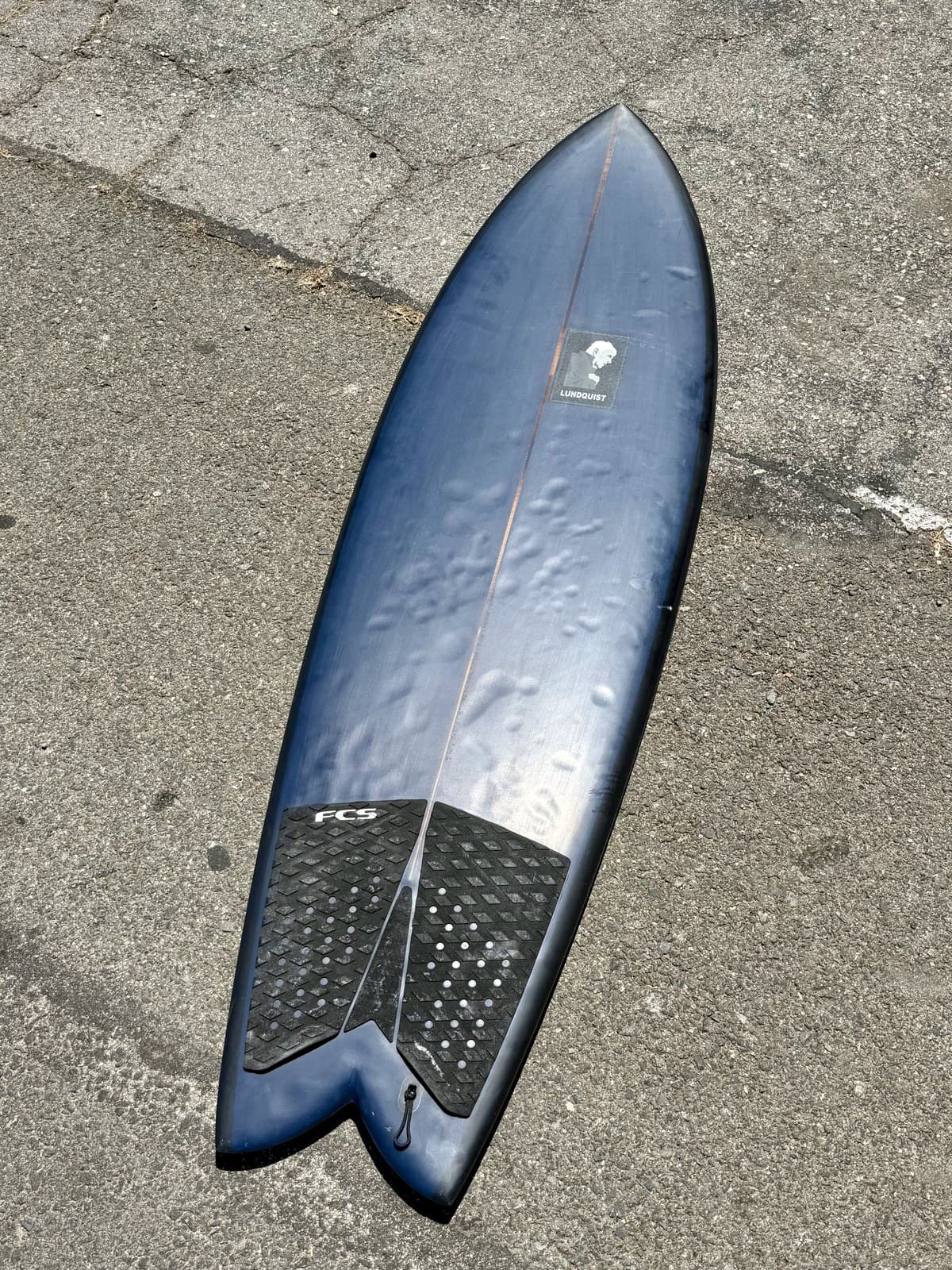

5'10 Revenant (4462317NR)

502226AL — Dylan Pagaduan (5'11 Black Deck)

522201MY — Alex Lopes (6'1 Baby Blue Deck)

532201MY — Noah Warwick (5'10 Gold + Yellow Deck)

542201MY — Nico Colombatto (5'8 Pastel Green Deck)

552201MY — Wolf Beeuwsaert (6'4 Green Rails)

562201MY — STRAYBOARDS (5'8 Green Deck)

572201MY — Connor Jaracz (5'8 Cream Deck)

582201MY (5'10 Yellow Deck)

592201MY (6'0 Black Deck)

72107JE (5'10 Verticle Black Streak + Thin DS)

762226MY — Colton Dickson (4'10 Flames + Checkers)

772226MY — Drake Vaughn (4'9 Black Red Design)

82107JE (5'10 Horizontal Black Streaks + Thick DS)

832203JE (5'10 Grey Resin)

842203JE (6'0 Mustard)

852203JE — Mike Sterner (5'10 clear)

GO DEEPER

Every construction call links to a full guide. Start with the essentials:

See all build guides →

FREQUENTLY ASKED QUESTIONS

What size Revenant should I get?

Ride your everyday-shortboard volume. The Revenant's outline and rocker are tuned for shortboard volumes — don't add 2–3L "for the twin" the way you would for a fish. If you ride a 30L thruster as your daily, ride a 30L Revenant.

For sizing across waves: pick your everyday volume for your home break, size up one liter (one length step) when the swell drops to waist-high, and size down one when it pushes past head-high. The featured 26–35L band covers most riders 140–200 lbs at the lengths their everyday board lives in.

Is the Revenant available as a quad?

`[BLAKE: ?]` — pending confirmation. Inventory shows one Revenant built as a quad on customer request, with a $20 fin-setup upcharge. The shape works as a quad, but stock is twin. If you want a quad, say so on the order and we'll cut it that way; if you want both options on one board, ask about a twin+stabilizer five-fin layout.

What waves is the Revenant built for?

Clean waist-to-overhead with shape and push. Reef and point surf where the wave has a face you can drive against — Lowers, Trestles, Salt Creek when San-O lines up clean, mainland Mexico points like Saladita or La Ticla on a surf trip. Mentawais shoulders too, on the days you don't want a thruster.

It's not a knee-high grovel board — when the wave goes flat, a fish or a wider quad will paddle and plane sooner. It's not a hollow-reef step-up either — when the surf turns into double-overhead push, reach for a different shape.

Who is the Revenant for — what skill level?

Intermediate-to-advanced. A twin without a trailer fin rewards confident foot pressure and back-foot drive — the fin setup makes the board faster but asks more of the rider. Beginners and beginner-intermediates should look at the thruster-default shapes first; the trailer fin is doing more work than most beginners realize.

If you've been riding shortboards for a couple of years and you're ready to feel what a twin gives you on a clean reef day, the Revenant is the shape. If you're stepping off a fish and want something looser but more drivey, this is also the answer.

How does the Revenant compare to a CI Two Happy Twin?

The Two Happy Twin is the closest competitor frame: a shortboard- derived twin tuned for clean shaped surf. Both shapes share the "performance twin first" intent — modern rocker, double-concave behind the fins, squash-or-similar tail.

Where the Revenant diverges: rail philosophy. The Revenant runs 60/40 pinched rails through the midsection that go hard through the last twelve inches — the design release line is biased toward back-foot drive. If you're a Two Happy Twin rider who wishes the board drove a little more and pivoted a little less off the back foot, the Revenant is the board to try.

What glassing options are there?

Three published tiers:

- $750 — Clear resin / sanded finish. Functional finish, fastest turnaround. PU blank with polyester resin. - $900 — Resin tint both sides / sanded finish. Color in the lam, smooth-sanded. - $1,100 — Resin tint both sides / gloss + polish finish. Top tier — a gloss coat over the tinted lam, polished to show quality.

Add-ons stack on top: swallow tail (+$15), channels (+$30), airspray ($50–$80), double stringer ($15–$40), EPS blank with epoxy resin (+$175), white carbon fin box patches (+$35). The customizer surfaces the running total as you toggle options.

How long does it take to build a Revenant?

Built to order in San Clemente. Standard turnaround runs 4–6 weeks on a clear-sanded build, 6–8 weeks on gloss + polish, 8–10 weeks on tint-sanded — the tint adds time because the lam has to be color- locked before the next layer goes on. Timelines move with the queue; your order confirmation will pin the actual ship-week before your deposit clears.

A 25% deposit holds your slot. The balance is due on completion before the board ships. If you're driving into San Clemente to pick it up, schedule a window — Blake will hand it over himself.

Why the Vee-with-channels in the tail and single concave forward?

The bottom contour reads from nose to tail in three zones: a single concave through the front two-thirds gives the lead foot a clean, loaded surface — that's what generates speed through the middle of the wave. Behind the fins, the bottom rolls into a Vee with channels through the last twelve inches.

The Vee rolls the board rail-to-rail at twin-fin speed without the hesitation a flat tail would have; the channels — two cuts running parallel through the Vee panel — split water cleanly at the exit so the board drives out of turns instead of stalling. Combined with the 60/40 pinched rails (hard through the last twelve inches), the release line is biased toward back-foot drive — a twin that drives where most twins pivot.

Open decision-gating items

- [ ] Voice-review pass — does Q1–Q8 sound like Blake? - [ ] Q2 (quad option) — confirm or remove. The placeholder text references inventory evidence; if quad isn't actually offered, remove this Q entirely. - [ ] Q5 (CI comparison) — confirm CI Two Happy Twin is the right comparison frame, or pick a different competitor (Album Twinsman / Sharpeye Twin Disco are the next two anchors per the descriptions file). - [ ] Q7 (turnaround windows) — confirm 4–6 / 6–8 / 8–10 timing matches Jack's current queue. Update if the standard build window has shifted. - [ ] Q8 (contour-specific) — confirms the Vision read of the contour PNG: Vee-with-channels in tail + single concave forward + 60/40 pinched rails hard in tail. Verify the language matches Blake's own design intent.

BOARDS LIKE THIS

Other models with shapes, finishes, and feels that sit close to the Revenant. Tap any board to see its full page.

COMPLETE THE QUIVER

“Surf Everyday” means a board for every condition. Your Revenant covers waist-high to overhead with shape— here's what rounds out the quiver.

Building a quiver around the Revenant? Start a conversation — we'll build the right boards for how and where you actually surf.

More boards live in the website catalog than at the shop. Visits are by appointment — text or call (949) 750-5067 to look at boards in person or start a custom build.

READY TO START?

Every Revenant is built to order in San Clemente — 4–6 weeks on clear-sanded, 6–8 weeks gloss and polish, 8–10 weeks tint-sanded. 25% deposit.
